DRAW VERTICAL PROFILE WITH LISP COMMAND



CREATE VERTICAL PROFIL/LONG SECTION IN AUTOCAT WITH LISP COMMAND



    Profiling is a very powerful external AutoCAD Lisp Command is using for Draw or Plot the Road, Drain, Canal etc. vertical profile or Long Section (No Vertical Curve).

You can load this in AutoCAD and Create your Simple Long Section or Vertical Profile. This command has no ability to draw the Vertical Curve, It Will create Simple Long Section or Vertical Profile.

For Using this Command in AutoCAD, simply follow the steps showing below.



Enter the data of the Profile in Excel like showing below.

Type AP in AutoCAD Command Line and Press ENTER key.

Locate Your Autolisp file with the name of profiling.



Select Profiling AutoLisp and Press the Load button available at the right side of the table.

After Load press the Close Button locate at the bottom of the table.



Enter the PRO in the AutoCAD Command line to execute the Application.

It will ask the First Station of your Profile or Long Section.

Give the First Station of your profile or Long Section.



Then Enter the First Elevation of the Profile or you can copy from the Excel Sheet.



Then Enter the Interval or Station Distance.

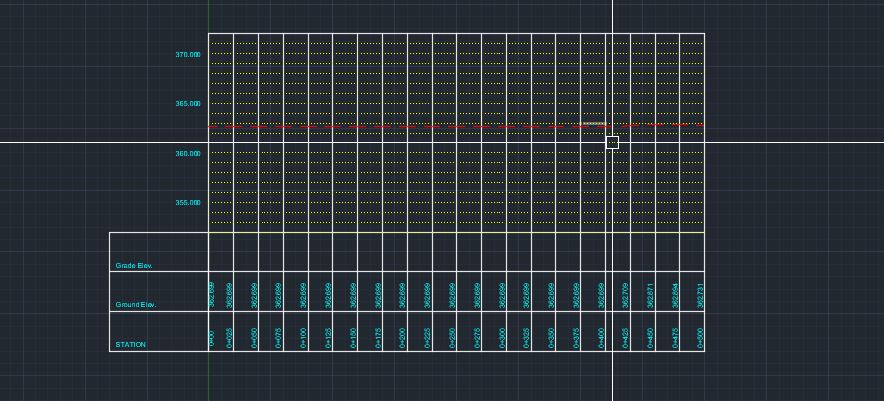

And Click on the Screen.

Video also available at:

Vertical Profile Video Link

Download File from the Link Showing Below.

 https://www.mediafire.com/file/gaho27zd7lc128i/profiling100.lsp/file
